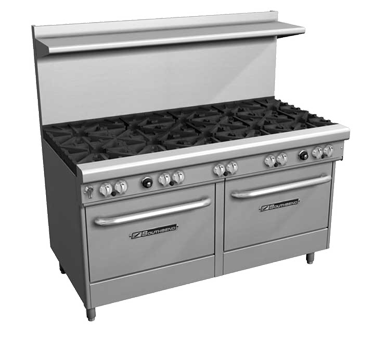

Southbend 4604AD-3TR-NG 48" Natural Gas Ultimate Restaurant Range - 175,000 BTU
Shop all Southbend Commercial Gas Range
- SKU:
- 4604AD-3TR-NG
- MPN:
- 4604AD-3TR
Select an Option
Commercial design services
Discover a whole new degree of kitchen customization with our proven idea-through-installation model. Learn more
Southbend 4604AD-3TR-NG range offers 175,000 BTU, four burners, and a 36" griddle for high-throughput cooking. Stainless steel build, thermostatic controls, and spring-assisted oven door ensure durability in commercial kitchens.
- Standard + convection oven
- 36" griddle with four burners
- 22.5" flue riser with hi-shelf
- 48" gas cooktop with griddle
- Stainless steel front, sides, shelf
- 175,000 BTU for high-volume cooking
Weight1075 LBS
Height59.5 (H)
Width60.75 (W)
Depth44.5 (D)
Base(1) Standard Oven, (1) Convection Oven
ControlsThermostatic Controls
Cook Top37.00
Cubic Volume132.3 Cu.Ft
Door Opening15.50"
Exterior FinishStainless steel
Flue Riser22.5 Flue Riser Standard
Legs6" Adjustable Legs
No of Burners4
Number of Racks4
Oven Bottom13.00"
Oven DoorSpring assisted, counterweight door
Plate Thickness.500" = 1/2"
TopBurners with Left Griddle
Total BTU175,000 BTU
VentBackriser with hi-shelf
Voltage120
ManufacturerSouthbend
Amps5.9
Phase1
Hertz60
Oven TypeRestaurant Range
Control TypeManual
Power TypeNatural Gas
| Weight | 1075 LBS |
|---|---|
| Height | 59.5 (H) |
| Width | 60.75 (W) |
| Depth | 44.5 (D) |
| Base | (1) Standard Oven, (1) Convection Oven |
| Controls | Thermostatic Controls |
| Cook Top | 37.00 |
| Cubic Volume | 132.3 Cu.Ft |
| Door Opening | 15.50" |
| Exterior Finish | Stainless steel |
| Flue Riser | 22.5 Flue Riser Standard |
| Legs | 6" Adjustable Legs |
| No of Burners | 4 |
| Number of Racks | 4 |
| Oven Bottom | 13.00" |
| Oven Door | Spring assisted, counterweight door |
| Plate Thickness | .500" = 1/2" |
| Top | Burners with Left Griddle |
| Total BTU | 175,000 BTU |
| Vent | Backriser with hi-shelf |
| Voltage | 120 |
| Manufacturer | Southbend |
| Amps | 5.9 |
| Phase | 1 |
| Hertz | 60 |
| Oven Type | Restaurant Range |
| Control Type | Manual |
| Power Type | Natural Gas |
