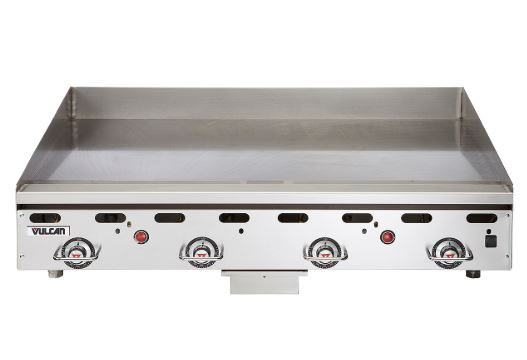

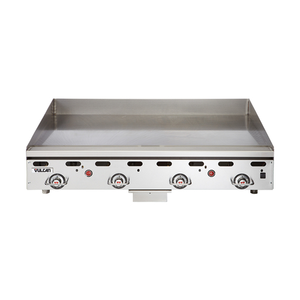

Vulcan MSA60-LP 60" Liquid Propane Heavy Duty Griddle - 135,000 BTU


Vulcan MSA60-LP Product Description

Cleaning Instructions

For better sanitation and hygiene, clean the Vulcan MSA60-LP Gas Griddle regularly. Empty the grease drawers as needed throughout the day and clean it at least once daily. You may use a griddle scrapper to clean the cooking surface after each use. For a more thorough cleaning, turn the griddle off and let it cool down between 275 degrees Fahrenheit to 300 degrees Fahrenheit. Afterwards, apply room temperature water and perform the clean-up using a griddle scrapper. Be sure to clean the stainless steel surfaces with a damp cloth then polish it with a soft and dry cloth. A griddle cleaner may be used if the unit becomes discolored.

Additional Info

The Vulcan MSA60-LP Gas Griddle is NSF and CSA certified.

General Info

Vulcan MSA60-LP Gas Griddle Featuring a myriad of ergonomic features, the Vulcan MSA60-LP Gas Griddle is an undoubtedly useful addition to your productive kitchen. With its heavy-duty construction, you can count on the Vulcan MSA60-LP Gas Griddle for continued operations. This griddle boasts of a robust structural integrity with its stainless steel front, sides, and front top ledge which features a cool bullnose design. In the interest of further durability, it also has a fully-welded stainless and aluminized steel chassis frame. With a total of 5 burners, the Vulcan MSA60-LP Gas Griddle is highly conducive to facilitating higher productivity in the kitchen. A single burner runs on 27,000 BTU per hour, which totals to 135,000 BTU for all of them. They have a shaped design constructed of aluminized steel and they occupy every 12 inches of the griddle width. They each have an embedded snap action thermostat which enables you to adjust the temperature between 200 degrees Fahrenheit to 550 degrees Fahrenheit on the steel plate. For better management, heavy-duty chromed thermostat knob guards are used which also provides a sleek appearance. To promote your safety, a pilot safety valve comes with every 2 burners and it completely shuts the gas off if the pilot extinguishes. The griddle uses liquid propane and is manually ignited while featuring a nch rear gas connection along with a gas pressure regulator. To cook your various food to perfection, the Vulcan MSA60-LP Gas Griddle utilizes a 1-inch thick polished steel griddle plate. It also has a 4-inch stainless steel back along with tapered side splashes for cleaner operations. The 3 nch grease gutter and chute are fully welded to enable easier cleaning and prevention of grease migration. 2 large, 6-quart stainless steel grease drawers come installed with the griddle. For better heat absorption, this is equipped with a heat shield. Low-profile and unobtrusive, the Vulcan MSA60-LP Gas Griddle has a user-friendly working height of 11 1/8 inches. Its overall dimensions are 15 nches (height) x 60 inches (width) x 31 nches (depth). The griddle has a weight of 650 pounds and it supported by 4-inch legs, all of which are adjustable.

Delivery Details

The Vulcan MSA60-LP Gas Griddle has a weight of 650 pounds and requires 2 or more persons to handle it. The unit requires a lift gate should a loading dock be unavailable. Verify the dimensions of the access path to the final location. This is to ensure that the unit is able fit through. Please note that the griddle must be installed in a location free of combustibles. There should be an adequate clearance for air openings. Likewise, there should be no obstructions for the air flow into or out of the griddle. Ensure that the installation is in compliance with local gas laws. Please inspect the unit thoroughly for any damages before signing the delivery receipt.

Maintenance Guide

To ensure continued positive product performance and enhanced product longevity, keep the Vulcan MSA60-LP Gas Griddle well-maintained. It is important to keep its griddle plate clean and free of carbonized grease as when accumulated, grease obstructs the heat transfer from the griddle surface to the food. This obstruction leads to spotty browning and all-around lessened cooking effectivity. Periodically examine and lubricate all of the unit valves. When the griddle is cool, you may check the flue to check if there are any obstructions. Remove them should you find any.

Vulcan MSA60 Specs

Weight650.00 LBS
Cooking Surface Width (side-side):55 - 60"
Exterior Finish:Stainless Steel
is free shipping:no
Sale Price:6690
