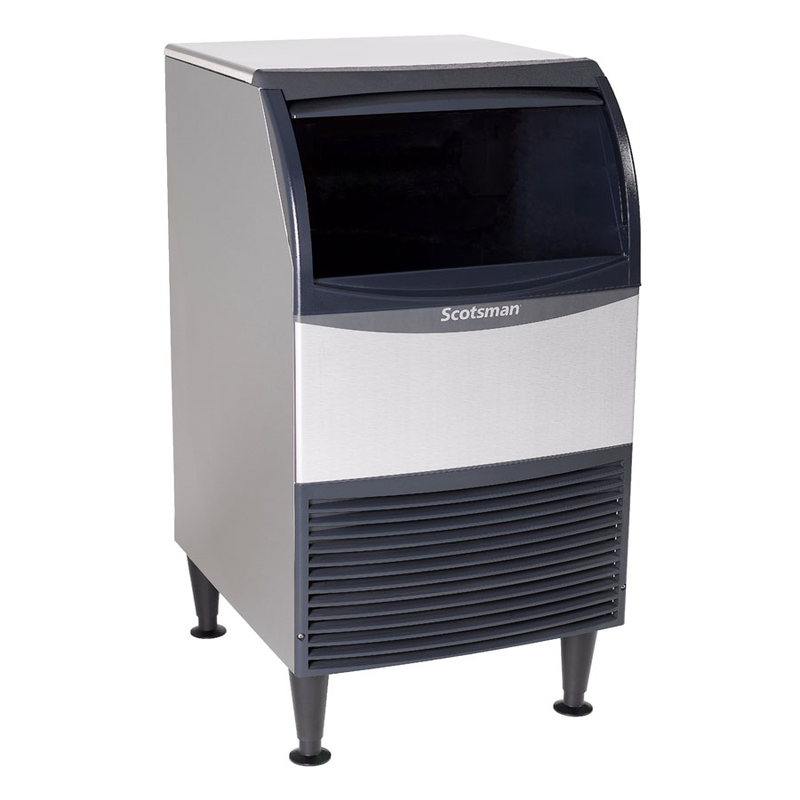

Scotsman UN1520A-1 20" Air Cooled Nugget Style Undercounter Ice Machine - 167 lb

Cleaning Instructions

We recommend performing cleaning about twice a year. The unit will not maintain a sanitary condition without human intervention. Use food-grade scale removers such as Scotsman Clear 1. Note that the ice machine must be connected to water, power, and drain during this procedure. It is important to use rubber gloves due to the acid contents of ice machine scale removers. These acids can cause burns. Please carefully read and observe the Maintenance and Cleaning section of the User Manual.

Additional Info

The Scotsman UN1520A-1 Air-Cooled Nugget Ice Machine requires 115 Volts, 60 Hz, 1 Phase.

General Info

The Scotsman Nugget Ice Machine offers high production and space-saving design. It can produce up to 167 pounds of The Original Chewable® Nugget Ice in 24 hours with only a small wide footprint. It features a 57-pound ice storage capacity that can be accessed through an ergonomic slide-back door.

Space-Saving Design

Only 20-inch wide and 37.56-inch high with adjustable legs, this commercial Nugget Ice Machine can fit in the tightest spaces. The unit can also be lowered below 34 inches and sealed to the floor with the optional floor mount kit for ADA compliance.

High Production

With a production capacity of up to 167 pounds per day, this Ice Maker is ideal for busy kitchens, bars, and therapeutic use. Its easily accessible bin can store up to 57 pounds of the Original Chewable® Nugget Ice.

Less Maintenance, Longer Machine Life

The sealed, maintenance-free bearings of this Self-Contained Undercounter Nugget Ice Machine help prolong machine life and promote maximum reliability. No need to worry about strenuous and time-consuming maintenance with Scotman’s top-notch design.

Durable Housing

The side panels are constructed of corrosion-resistant aluminum alloy and the front panel is made of heavy-duty, rust-free material. The durability of the Scotsman Ice Machines can sustain unavoidable bumps in busy and crowded kitchens.

No Extra Clearance Required

Features a front-facing, removable air filter for easy cleaning and a slide-back door for easy access to the bin. No need to provide side or front clearance to give your kitchen or bar area more room for movement or other appliances.

Unit-Specific QR Code

Each Undercounter Ice Maker has a unit-specific QR code for quick access to service manuals, cleaning guides, and warranty history. This benefits both operators and technical personnel for proper handling, maintenance, and repair of your unit.

Environmentally Friendly

The overall engineering of Scotsman UN1520A-1 meets the US Safe Drinking Act low lead requirements and is Energy Star certified. This Nugget Ice Machine utilizes a non-ozone depleting R-134A refrigerant for a much more sustainable technology.

Excellent Certification and Warranty

Each UN1520A-1 Nugget Ice Machine boasts certifications from UL, Energy Star, AHRI, and NSF, proving its manufacturing and design excellence. To make it more ideal than its equivalent competitors, it has a 3-year warranty on all parts and labor.

Delivery Details

●	Inspect the Scotsman UN1520A-1 Air-Cooled Nugget Ice Machine for any damages or missing parts before signing the delivery receipt.
●	Notify the forwarder, insurance agent, supplier, or service center immediately if the Nugget Ice Machine is damaged or with missing parts.
●	Two or more persons are required to handle this Undercounter Nugget Ice Machine.
●	Please ensure to verify the electrical specification of this item before connecting to a power source.

Maintenance Guide

The removable air filter located on the lower front grill will capture airborne dust during operation. As the dirt builds up, it begins to restrict airflow and causes the refrigeration system to work less efficiently. Clean the air filter regularly. Unplug the unit from the power supply before beginning to clean the condenser as the rotating fan blades can cause personal injury. The condenser fins require cleaning twice a year. Use caution to prevent damage to the condenser fins. Lightly brush the dust or use a vacuum to thoroughly clean the condenser.
