Groen BPM-15EC Product Description
LongDescription#@#NA#@@#Cleaning Instructions#@#The Groen BPM-15EC Braising Pan must be thoroughly sanitized after every use. Using a mild antibacterial soap (preferably with degreasing properties) and a soft dishcloth or sponge, carefully wipe down every surface and corner. Do not use sharp, pointed objects and harsh chemicals as these could cause serious damage to the pan’s stainless steel finish. Take advantage of the pan’s tilting properties to drain the cooking surface of any substance or cleaning solution. Rinse, wipe down, and dry the unit after cleaning. To know the complete cleaning procedures for this product, please make sure to refer to the manual/literature provided by the manufacturer.#@@#Additional Info#@#The Groen BPM-15EC Braising Pan is NSF, UL, and c-UL listed. It ships three-phase and is field convertible to a single-phase operation. Kindly specify if the electrical service is 208, 240, or 480 Volts.#@@#General Info#@#Groen BPM-15EC Braising Pan

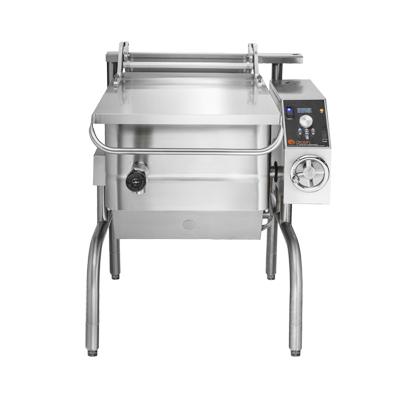

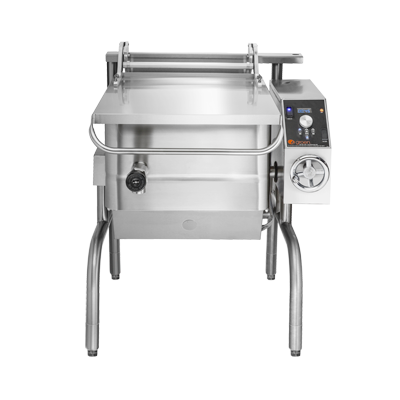

The Groen BPM-15EC Braising Pan is an ergonomic cooking equipment designed for maximum performance and strict compliance to the highest sanitation standards.
The Groen BPM-15EC Braising Pan boasts of a solid, one-piece welded, 304 stainless steel construction with an 8-inch pan (depth), providing users with significant durability and resistance to damage. The cooking surface is comprised of a 5/8-inch-thick stainless steel clad plate fitted with flat bar electric heating elements. This heavy-duty plate prevents warping or distortion while facilitating a balanced heat transfer over the entire cooking surface. The tilt mechanism and classic controls are mounted in an IPX6-rated, water resistant stainless steel housing (on the right side of the pan body). All exposed surfaces are also of stainless steel construction.
High quality components ensure that the Groen BPM-15EC Braising Pan provides users with optimal performance. It is equipped with controls that allow operations at a 7-degree angle to facilitate accurate griddling. Its high-limit, thermostatic controls automatically shut off when correct temperatures are reached and turn back on when temperatures fall below the requirement. It is also furnished with a power ON-OFF switch with an indicator light, a temperature control knob (175 degrees to 400 degrees Fahrenheit/79 degrees to 204 degrees Celsius range increments) and heat indicator lights for safe and secure cooking.
The Groen BPM-15EC Braising Pan has a smooth-action, quick-tilting body. A manual crank works in conjunction with a worm-and-gear tilt mechanism to provide accurate control while the contents of the pan is being poured. The tilt angle goes to vertical in 24 turns and also extends past vertical to facilitate easier cleaning. The open leg tubular stand design and 3-inch radius pan interior also ensure that maximum sanitation is attainable. Height-adjustable bullet feet keep the braising pan securely in place during operation, cleaning, and maintenance.
To give the Groen BPM-15EC Braising Pan a seamless, professional appearance that promotes sanitation even further, its interior is polished to a 100 emery grit finish while the exterior features a sleek no. 3 finish. It comes with a standard faucet bracket (for right-side, left side, or right-rear faucet mounting) and graduated fill-level marks in both gallons and liters. It requires one electrical connection and has standard electrical specifications of 208 Volts/3-Phase (22 Amps, 7.7 Kilowatts). In terms of capacity, it can easily accommodate as much as 15 gallons of product.#@@#Delivery Details#@#• The Groen BPM-15EC Braising Pan might require two or more persons to lift it.
• In the absence of a loading dock, kindly ensure the availability of a lift gate.
• Make sure to inspect the Groen BPM-15EC Braising Pan for any damage or missing components before signing the delivery receipt.
• In case there are any doubts about electrical connections, it is recommended that an evaluation be made by a qualified personnel who will observe all the applicable safety and national electrical codes.
• This unit must not be connected to a power source unless you are certain that it matches the electrical specifications found in the owner’s manual.
• Make sure to install the Groen BPM-15EC Braising Pan at a location with adequate clearances to make it accessible for thorough cleaning, maintenance, and repair.
• The installation instructions written in the manufacturer’s manual/specification sheet must be strictly followed.#@@#deliverynotes#@#Culinary Depot normally ships the Groen BPM-15EC Braising Pan in # business days of your payment being received and cleared.#@@#Maintenance Guide#@#Ensure that the Groen BPM-15EC Braising Pan is properly turned off and disconnected from the power source prior to any maintenance attempt. Let the unit cool down significantly before approaching it with the appropriate cleaning implements. As much as possible, do not subject the pan to intense heat when there is no liquid in its interior. To know the complete maintenance procedures for this unit, kindly read the manual/literature provided by the manufacturer.
