True GDM-49-HC~TSL01 Two Section Hinged Doors Refrigerated Merchandiser - 115V


True GDM-49-HC~TSL01 Product Description

Cleaning Instructions

Before doing any cleaning procedures, make sure to disconnect the equipment from the power. Then, start cleaning the equipment by wiping the surfaces of the exterior and interior cabinet with a soft cloth soaked with soap. Rinse thoroughly after. Map the underneath surface of the equipment as well to prevent bacteria and other contaminants from clogging the condenser coils. For detailed instructions on how to clean the condenser, kindly refer to the manufacturer’s manual.

Additional Info

The True GDM-49-HC~TSL01 Glass Door Merchandiser holds the following health and safety approvals: cULus Listed, UL EPH listed, NSF/ANSI listed, and Energy Star qualified. It is made in the U.S.A.

General Info

Attract customers with a brilliant display of your food products using the True GDM-49-HC~TSL01 Glass Door Merchandiser!

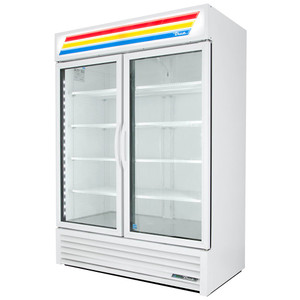

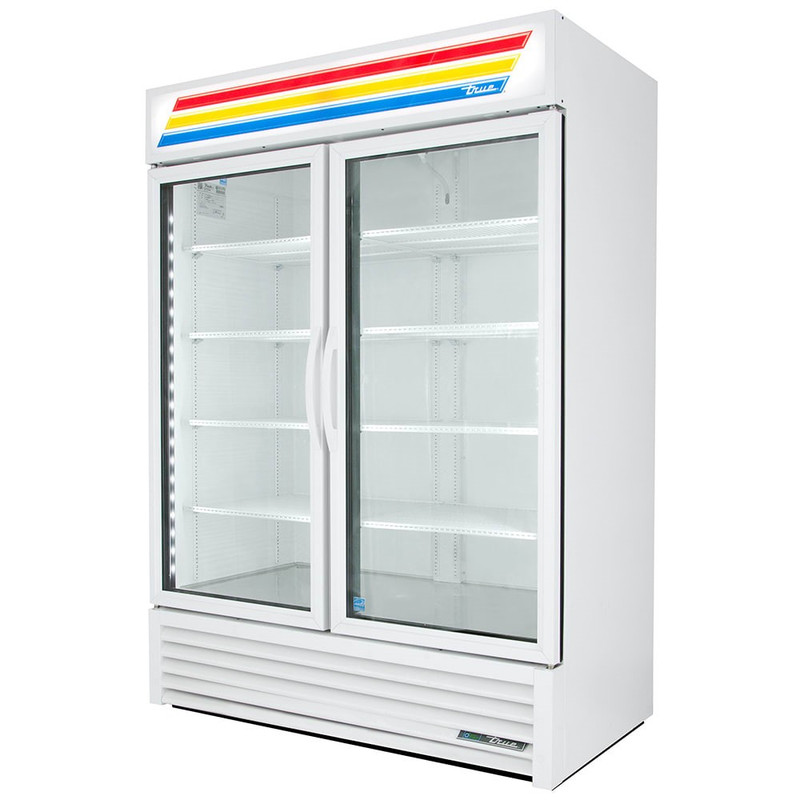

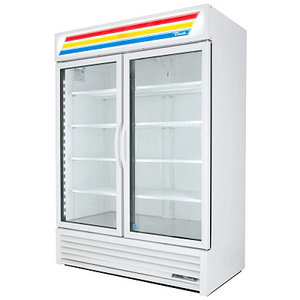

The True GDM-49-HC~TSL01 Glass Door Merchandiser is a two-door refrigerated merchandiser with dimensions of 54 1/8 inches (W), 29 7/8 inches (D), 78 5/8 inches (H). Durable and long-lasting, it has a non-peel or chip black powder-coated cold-rolled steel for the cabinet exterior. Additionally, it has a steel frame rail with a black powder coating for corrosion protection. Meanwhile, the merchandiser presents a white aluminum liner with a stainless-steel floor interior. It also features an illuminated exterior sign panel that comes with a variety of sign options.

Spacious and easy-to-arrange, the True GDM-49-HC~TSL01 Glass Door Merchandiser has eight (8) adjustable PVC-coated wire shelves with dimensions of 24 9/16 inches (L) and 22 1/2 inches (D). They are adjustable on 1/2-inch increments and have shelf support pilasters made of the same material as the cabinet interior. There are also four (4) chrome-plated shelf clips supplied per shelf. Of course, it is also equipped with LED interior lighting to provide proper visibility and even lighting throughout the cabinet. Best for food preservation in extreme conditions, the merchandiser maintains a temperature from 33°F to 38°F. It is also designed with self-closing swing doors with double pane thermal insulated glass door handles and a positive seal, torsion type closure system. Furthermore, it has 12-inch long extruded handles and magnetic door gaskets that are easily removable without the need for tools.

The entire cabinet structure of the True GDM-49-HC~TSL01 Glass Door Merchandiser is foamed-in-place using a high-density, polyurethane insulation for optimal temperature retention. Likewise, it is constructed with a self-contained, capillary tube system using R290 hydro carbon refrigerant that has zero ozone depletion potential (ODP) and zero global warming potential (GWP). It also features a bottom-mounted condensing unit, which presents a “no stoop” lower shelf, for easy maintenance. Moreover, it has an electronically commutated, epoxy-coated evaporator and condenser fan motor for higher peak efficiencies and more consistent air volume movement. It also comes with a clean-out drain constructed on the cabinet floor.

Completely pre-wired at the factory, the True GDM-49-HC~TSL01 Glass Door Merchandiser is ready for connection to 115 volts, 60 hertz, and 1-phase electrical outlet. It consumes 1/2 horsepower and 8.5 amps. It is supplied with a 9-foot cord and NEMA 5-15 P plug.

Delivery Details

•	Upon receiving your True GDM-49-HC~TSL01 Glass Door Merchandiser, carefully inspect it for any damage. If any damages are found, immediately make a claim with the freight carrier and have the product marked as “damaged” on their copy of the freight bill.
•	As with all heavy equipment, two or more persons are required to lift and transport this merchandiser.
•	A loading dock or lift gate is required to use for this equipment.
•	Place the equipment on a location with a leveled surface and adequate ventilation system to reduce risk of accidents.
•	Before making the final connection, please verify the electrical specification of the equipment. This can be found on the refrigerated cabinet’s data plate.

Maintenance Guide

Do regular cleaning and check-up of equipment parts to keep the True GDM-49-HC~TSL01 Glass Door Merchandiser working in its best condition for a long time. Clean the cabinet surfaces using the correct cleaning tools at least once a day. Meanwhile, clean the condenser once every 30 days. Frequently check the door gaskets if there are any leaks or other damages as well.

True GDM-49-HC~TSL01 Specs

Weight465.00 LBS
Compressor HP:3/4 HP
Door Type:Hinged Door(s)
Exterior Finish:White
Refrigeration:Self-Contained, Bottom Mounted
Tags:Refrigerator, Merchandiser
is free shipping:no
