True GDM-10PT-HC~TSL01 One-Section Glass Door Pass-Thru Refrigerated Merchandiser

SKU:
GDM-10PT-HC~TSL01
MPN:
GDM-10PT-HC~TSL01

True GDM-10PT-HC~TSL01 Product Description

Cleaning Instructions

Care should be taken when cleaning the condenser of the True GDM-10PT-HC~TSL01 Glass Door Merchandiser. To remove dirt from the condenser coil and fan blades, please use a stiff bristle brush. Once done, reinstall the louvre assembly.

Additional Info

The True GDM-10PT-HC~TSL01 Glass Door Merchandiser is c-UL-us and UL classified. This merchandiser is made in the United States of America. It is also NSF and ANSI listed for storage and/or display of packaged or bottled products.

General Info

Display merchandise in an attractive, high-capacity equipment with the True GDM-10PT-HC~TSL01 Glass Door Merchandiser!

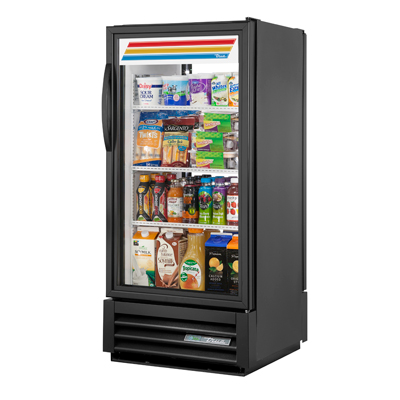

The True GDM-10PT-HC~TSL01 Glass Door Merchandiser is a pass-thru refrigerator that allows access on both sides of the cabinet. This makes it highly suitable for use in a commercial space as, if placed next to a storage area, it can be easily restocked without need of disrupting customer activity. It measures 24.88 inches wide, 25.5 inches deep, and 53.38 inches high. Weighing 225 pounds, its exterior is made from cold rolled steel with a permanent, non-peel black powder coating. Adding to the weight is a welded heavy-duty steel frame. Leg levers are included to keep the merchandiser level.
The interior of the True GDM-10PT-HC~TSL01 Glass Door Merchandiser is created using high-density polyurethane that has been foamed in place. In addition to that, the interior is lined with NSF approved aluminum, ensuring that food stays safe for consumption and is well-protected from the exterior environment. For added strength, the floor of the merchandiser is made of stainless steel and has a built-in drain to make cleaning easier.
Decorated with a decal sign, Low-E double pane thermal insulated glass composes the swing door of the True GDM-10PT-HC~TSL01 Glass Door Merchandiser. Its glass panes are supported on a mitered plastic channel frame. Attached to the frame is a 12-inch long integrated handle. The door has a torsion type closure and shuts with a positive seal. Mounted on a magnetic door gasket with one-piece construction, you can easily remove the door for cleaning even without tools.
The True GDM-10PT-HC~TSL01 Glass Door Merchandiser uses 115 volts-1 phase-60 hertz and 2.2 amps. It is provided with a 10 feet long cord and NEMA 15-5R plug. For your convenience, it is pre-wired at the factory and arrives ready for a final connection to be made to a dedicated 15 amps outlet. This allows the merchandiser to support its efficient LED lighting system and refrigeration system.
A 1/5 horsepower condenser, together with an environmentally friendly R290 hydrocarbon refrigerant allows the True GDM-10PT-HC~TSL01 Glass Door Merchandiser to support temperatures between 33 to 38 degrees Fahrenheit. In addition to a capillary system, the merchandiser features electrically commutated evaporator and condenser fan motors. This allows for better efficiency because it moves a consistent volume of air within the cabinet. The condensing unit is also bottom mounted, allowing for a no stoop lower shelf that ensures merchandise is not obscured from view of buyers.
The True GDM-10PT-HC~TSL01 Glass Door Merchandiser comes with three wire shelves. Coated with heavy-duty PVC coating, the three shelves have a consistent size of 20 5/8 inches long x 17 inches deep. Not only does each shelf come with four chrome plated shelf clips but they also have shelf support pilasters to allow for adjustments of inch increments.

Delivery Details

•	Two or more persons are required to handle the True GDM-10PT-HC~TSL01 Glass Door Merchandiser.
•	In the absence of a loading dock, please use a lift gate.
•	Verify whether the merchandiser will fit by checking the dimension of the access path to the final location (doors width and height).
•	Do not sign the receipt without first checking the True GDM-10PT-HC~TSL01 Glass Door Merchandiser for damages.
•	This merchandiser is not intended for outdoor installation.
•	Do not operate the merchandiser unless you are sure that its electrical specifications match that of your power source.
•	The True GDM-10PT-HC~TSL01 Glass Door Merchandiser’s refrigerant tubing, condenser, and evaporator coils are prone to damage. Please make sure to be extra cautious in handling it.

Maintenance Guide

The True GDM-10PT-HC~TSL01 Glass Door Merchandiser requires proper cleaning and maintenance on a regular basis. Proper provision of necessary procedures will extend the lifetime of your merchandiser. When cleaning, please do not use abrasive tools and caustic chemicals.

True GDM-10PT-HC~TSL01 Specs

Weight0.00 LBS
Height:34.00(H)
Width:64.00(W)
Depth:30.00(D)
etllisted:TRUE
Compressor HP:1/5 HP
Cord Length:9'
Door Type:Glass
Energy Efficiency:ENERGY STAR®
Exterior Finish:Black
Interior Finish:White
Nema Plug Type:NEMA 5-15P
No. of Shelves:3
Number of Doors:1
Number of Sections:1
Refrigerant Type:R-290
Refrigeration Location:Bottom mounted
Temperature (Refrigerator ):33??F to 38??F
Voltage:115v
Tags:Refrigerator, Merchandiser
Manufacturer:True
UL Certified:Yes
Amps:2.2
Phase:1-Ph
Hertz:60
is free shipping:no
Filter Type:Merchandising Refrigeration
