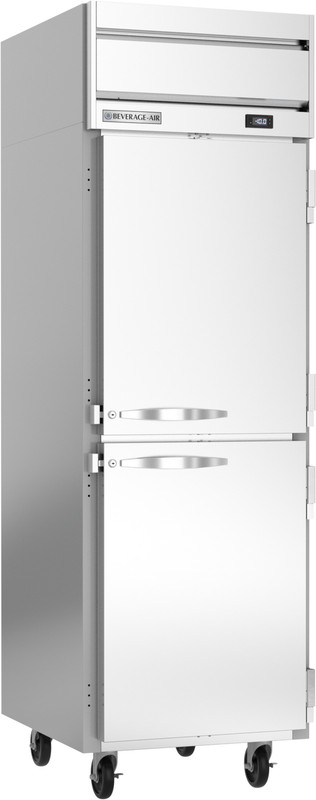

Beverage Air HF1HC-1HS 26" W One-Section Solid Door Reach-In Horizon Series Freezer


Beverage Air HF1HC-1HS Product Description

Cleaning Instructions

In cleaning this Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer, use a clean cloth and a mild cleaner. The cleaner to use will vary on the type of surfaces you need to clean. If it is for the exterior surfaces, use a cleaner that is compatible with the stainless steel. While for the interior surfaces, use non-caustic detergent soap that is compatible with the Aluminum material. It highly recommended as well not to use any cleaners that contain flammable or acidic ingredients. Clean the exterior surface by wiping the damp cloth on them. Continuously wipe it until all the dirt has been removed. Rinse the surfaces by using a wet cloth. Using a new cloth, wipe it to dry. Do the same process for the interior surfaces. But ensure to remove all the food products inside before starting cleaning it. Allow the doors open for it to air dry.

Additional Info

Before ordering the Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer, ensure to measure the door width and height of your establishment, from the access point to its final location. This is to ensure this equipment will fit. The entire unit and parts of this Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer is made in the U.S.A. It also obtained the following certifications: C-UL-US, Classified UL-EPH, and Classified UL for Sanitation.

General Info

This Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer is the perfect addition to your kitchen! It has a durable exterior structure with large capacity freezer cabinets. The durability of this Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer comes from the stainless steel material it is constructed of. This is the best material to use as this is proven to heighten the longevity with strong resistance to corrosion. The exterior is designed with plain stainless steel on the front surface and gray painted on the sides. For flexibility, the Beverage Air equipped it with heavy-duty casters that have 6 inches height. It also features two brakes to ensure stability when it is immobile. The overall exterior structure measures 26 inches (W) x 33-5/8 inches (D) x 85 inches (H) and weighs 326 pounds. The overall depth includes the handle size, while the height includes the caster height. The Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer is a single-section freezer that contains two half freezer cabinets. The interior is made of aluminum material which is also processed to have great resistance to corrosion. This is a great advantage as it strengthens the safety of the food products while inside the freezer. The interior is furnished with a dimension of 22 inches (W) x 26-1/8 inches (D) x 62 inches (H). With these spaces, it can assure to accommodate 21.06 cu. feet capacity, one-piece grille, and three heavy-duty wire shelves (epoxy-coated). Check on the food products with ease as it is well-illuminated thanks to the LED interior light installed on the interior. The temperature that this Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer can efficiently maintain is 0and below. You can track and monitor the temperature setting by using its full electronic control. This temperature becomes achievable as it is supported by a refrigeration system that uses R290 Hydrocarbon refrigerant. This is the chosen refrigerant to comply with all the environmental concerns. It a bonus that it is energy-efficient which is helpful to maximize the freezer performance while conserving energy consumption. Working alongside with it is the electric defrost (automatic), epoxy-coated evaporator coil, expansion valve technology, and top-mounted compressor. The expansion valve technology works by maintaining to deliver a high-quality performance. Since the compressor is installed on the top part, it requires 12 inches top clearance when installing. This refrigeration system works on 3/4 horsepower and produces 1,927 BTU per hour. The freezer cabinets of this Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer is constructed with matching half doors (2). These doors are field reversible to easily remove it when servicing or cleaning. It also features a self-closing feature with 120tay-open capability. Its construction is completed with magnetic gaskets, door locks, and anti-microbial handles. This commercial reach-in freezer runs on 115 volts/60 Hz/1 phase electrical supply with 11 Amp.

Delivery Details

Upon receiving the equipment, inspect it for any damage. If you found any form of visible or concealed damages, mark the carrier's copy of the freight bill "damaged". Once verifying that you get the right equipment and complete order, sign the delivery receipt. Two or more people are required to handle this equipment. A lift gate is required for this equipment when a loading dock is not available. If the loading dock is not available, please use a lift gate for this equipment. Keep this equipment in an upright position when transporting. Obey all the safety guidelines when transporting, installing, and operating this equipment. The installation and electrical connections must only carry out by a qualified technician.

Maintenance Guide

To enjoy the best performance of this Beverage-Air HF1HC-1HS Horizon Series Reach-In Freezer, you must maintain it in good condition. You can achieve this by cleaning the equipment regularly for the exterior surfaces, at least once a month or as needed for the interior surfaces, and every 3 to 6 months for the evaporator coil. Performing a preventive check is helpful too to immediately identify problems. If you found normal wearing such as broken bulbs or gaskets, replace it immediately. For serious problems or damage, call an authorized technician to perform the servicing.

Beverage Air HF1HC-1HS Specs

Weight345.00 LBS
Capacity (cu. ft):10 - 23 cu. ft.
Compressor HP:3/4
Door Style:Half Hinged
Door Style2:Half Hinged
Door Type:Solid
Exterior Finish:Stainless Steel
Interior Finish:Aluminum
Number of Sections:1
Refrigeration:Self-Contained, Top Mounted
Tags:Freezer, Reach-In
Manufacturer:Beverage Air
Filter Construction:Stainless Steel

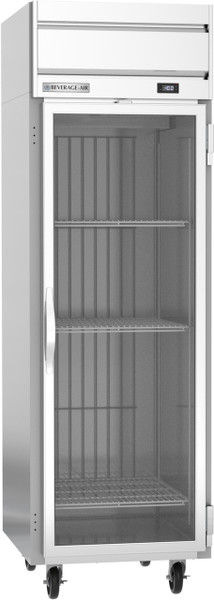

Alternate Image:HF1HC-1HS--Lview-Open.png
is free shipping:no
Sale Price:3789.27
