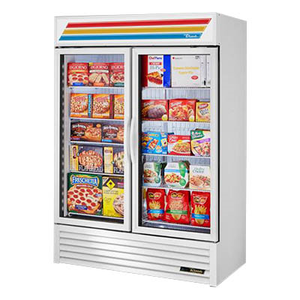

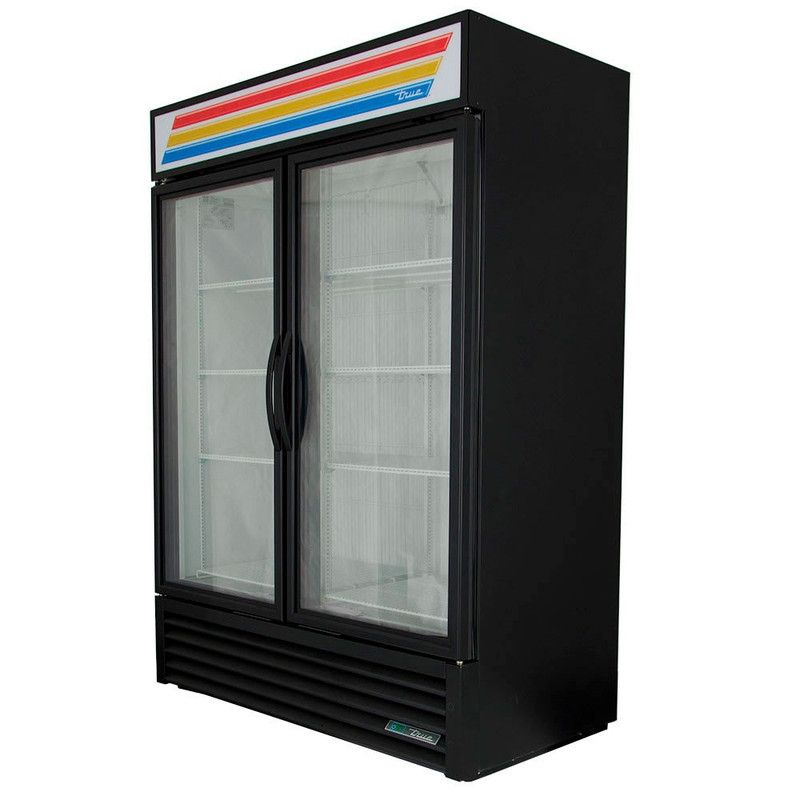

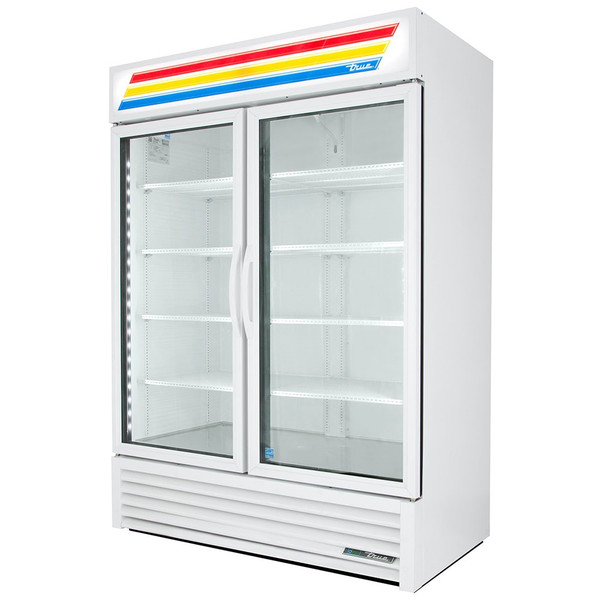

True GDM-49F-HC~TSL01 Two Section Glass Hinged Doors Freezer Merchandiser

SKU:
GDM-49F-HC~TSL01
MPN:
GDM-49F-HC~TSL01

True GDM-49F-HC~TSL01 Product Description

Cleaning Instructions

Disconnect the True GDM-49F-HC~TSL01 Glass Door Merchandiser from the power source. Then, start cleaning by wiping the surfaces of the exterior and interior cabinet with a soft cloth soaked with soap. Rinse thoroughly after. Map the underneath surface of the equipment as well to prevent bacteria and other contaminants from clogging the condenser coils. For detailed instructions on how to clean the condenser, kindly refer to the manufacturer’s manual.

Additional Info

The True GDM-49F-HC~TSL01 Glass Door Merchandiser is cULus Listed, UL EPH Listed, NSF/ANSI Listed, and Energy Star qualified. It is made in the U.S.A.

General Info

For an attractive and efficient display of your food products, use True GDM-49F-HC~TSL01 Glass Door Merchandiser!

The True GDM-49F-HC~TSL01 Glass Door Merchandiser is a two-section freezer merchandiser. It has dimensions of 54 1/8 inches (W), 29 7/8 inches (D), 78 5/8 inches (H), and a weight of 600 pounds. For a durable unit, the cabinet exterior showcases a permanent non-peel or chip white powder-coated cold-rolled steel construction. It also has a steel frame rail that is fitted with leg levelers. Meanwhile, the merchandiser presents a white aluminum liner with a stainless-steel floor interior finish. It is available with an illuminated exterior sign panel with a variety of sign options upon purchase.

Easy to organize according to your needs, the True GDM-49F-HC~TSL01 Glass Door Merchandiser has eight (8) adjustable PVC coated wire shelves with dimensions of 24 9/16 inches (L) and 20 3/4 inches (D). They are adjustable on 1/2-inch increments and have shelf support pilasters made of the same material as the cabinet interior. There are also four (4) chrome-plated shelf clips supplied per shelf. Additionally, it is equipped with LED interior lighting for proper visibility and even lighting throughout the cabinet.

Highly reliable for food preservation, the True GDM-49F-HC~TSL01 Glass Door Merchandiser’s interior can maintain a temperature of -10°F. For maximum airflow, a back guard and floor rack are added. It is also designed with self-closing swing doors designed to reduce energy waste. It features a triple pane thermal insulated glass door with 12-inch long extruded handles and positive seal, torsion type closure system. Moreover, it also has easy-to-remove magnetic door gaskets for convenient cleaning.

Environmentally friendly, the True GDM-49F-HC~TSL01 Glass Door Merchandiser cabinet is foamed-in-place using a high-density, polyurethane insulation that has zero (0) ozone depletion potential (ODP) and zero (0) global warming potential (GWP). Correspondingly, it is constructed with a self-contained, capillary tube system using R290 hydrocarbon refrigerant. It also features a bottom-mounted condensing unit with a “no stoop” lower shelf for easy maintenance. Not only that, but it also has an electronically commutated, epoxy-coated evaporator and condenser fan motor for higher peak efficiencies and more consistent air volume movement.

The True GDM-49F-HC~TSL01 Glass Door Merchandiser is completely pre-wired at the factory and ready for connection to a 115/208-230 volts, 60 hertz, and single-phase dedicated circuit. A dual compressor system is also used where each is rated at 3/4 horsepower. It is supplied with a cord and plug set.

Delivery Details

•	Upon receiving your True GDM-49F-HC~TSL01 Glass Door Merchandiser, carefully inspect it for any damage. If any damages are found, immediately make a claim about it with the freight carrier and have the product marked as “damaged” on their copy of the freight bill.
•	As with all heavy equipment, two or more persons are required to lift and transport this merchandiser.
•	A lift gate or loading dock is required to use for this equipment.
•	Place the equipment on a location with a leveled surface and adequate ventilation system to reduce the risk of accidents.
•	Always verify the electrical specifications of this equipment before making the final connection.
•	Verify the dimensions of the access path to the final location to ensure that the equipment can fit through.

Maintenance Guide

Regular cleaning and maintenance are necessary to keep the True GDM-49F-HC~TSL01 Glass Door Merchandiser working in its best condition for a long time. Clean the cabinet surfaces using the correct cleaning tools at least once a day. Meanwhile, clean the condenser once every 30 days. Frequently check the door gaskets if there are any leaks or other damages as well.

True GDM-49F-HC~TSL01 Specs

Weight600.00 LBS
Height:78.63(H)
Width:54.13(W)
Depth:29.88(D)
Compressor HP:3/4 HP
Depth (front - back):Standard
Doors:Hinged
Exterior Finish:White
Refrigeration:Self-contained
Tags:Freezer Merchandiser
Manufacturer:True
Number of Sections:2
Voltage:115/208-230v
Amps:12.3
Phase:1-Ph
Hertz:60
is free shipping:no
