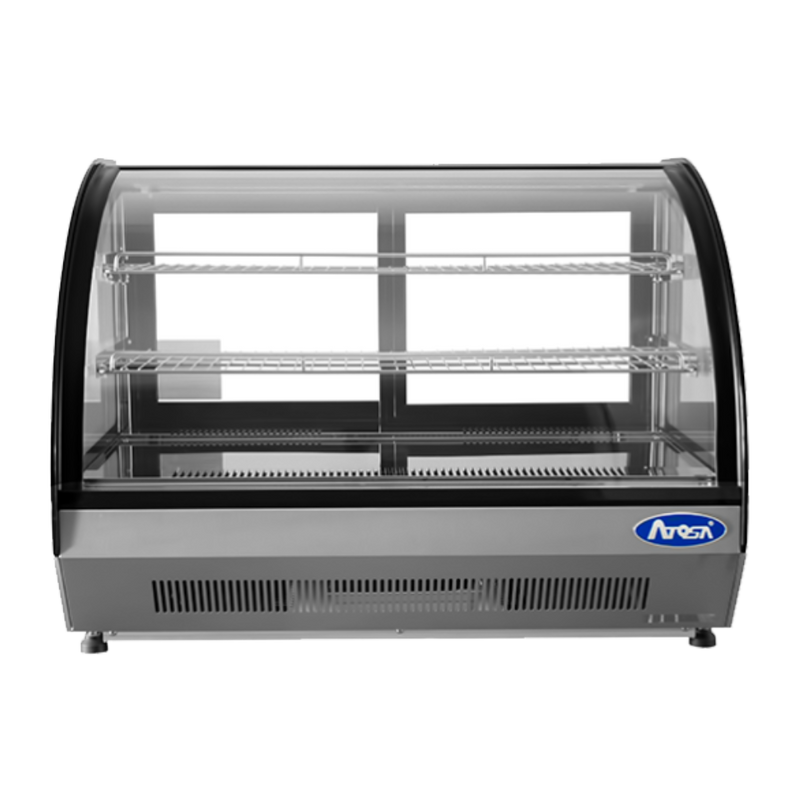

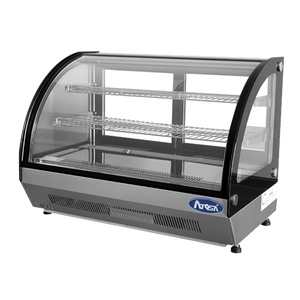

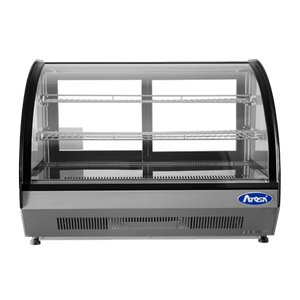

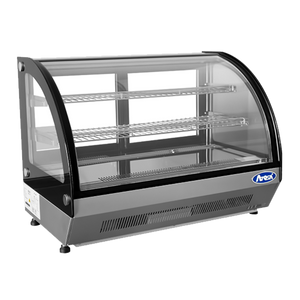

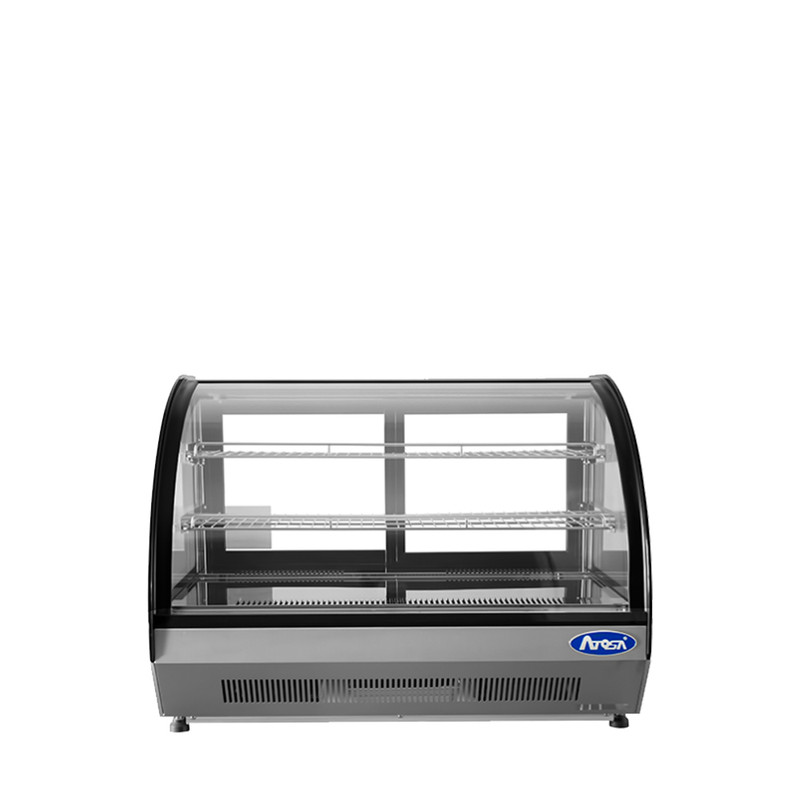

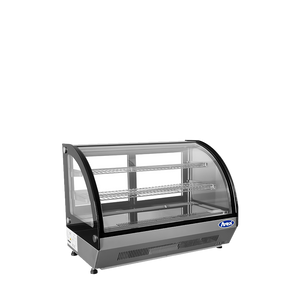

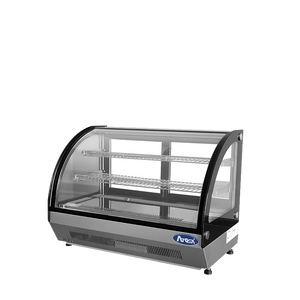

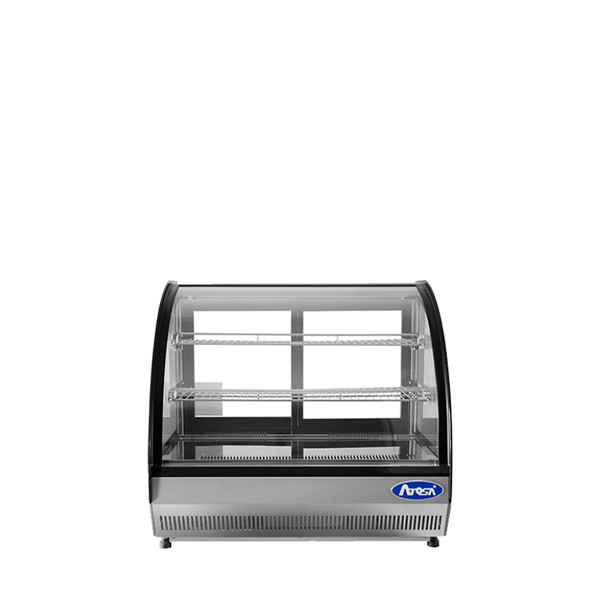

Atosa CRDC-46 35.4"W Refrigerated Display Case

SKU:
CRDC-46
MPN:
CRDC-46
$2,266.00

Atosa USA, Inc. CRDC-46 Product Description

Refrigerated Display Case, countertop, 35-2/5"W x 22-1/10"D x 26-2/5"H, 4.6 cu. ft. capacity, curved front glass, 33 - 41temperature range, (2) stainless steel shelves, (2) rear sliding doors, LED interior lighting, digital controller, defog feature, rear mounted self-contained refrigeration, R290 refrigerant, stainless steel interior & exterior with black frames, leveling legs, 1/5 HP, 115v/60/1-ph, 2 amps, NEMA 5-15P, cETLus, ETL-Sanitation

Cleaning Instructions

Clean the Atosa CRDC-46 Countertop Refrigerated Display Case by using a cloth, mild water, and neutral dishwashing soap. Mixed water and dishwashing soap, then dip the cloth in it. Wipe it on the refrigerated cabinet interior until the dirt and odor have been removed. Rinse it by washing the cloth using clean water and squeeze it tight to remove excess water. Wipe the cloth again on the surfaces to remove the dishwashing soap residue. Repeat this process until the soap is removed. Get a new cloth to wipe it dry.

For the condenser, you can clean it by removing the dustproof hood first then clean the filtration mesh using clean water. Dry it after.

Additional Info

Atosa CRDC-46 Countertop Refrigerated Display Case includes a NEMA 5-15P plug in the shipping container. It is ETL for Sanitation and C-ETL-US certified.

General Info

Atosa CRDC-46 Countertop Refrigerated Display Case offers a sophisticated commercial countertop merchandiser where you can showcase your delicious food products!

Atosa CRDC-46 Countertop Refrigerated Display Case has an impressive structure that is mainly constructed of stainless steel. For the main case, it is furnished with a curved glass design and a bottom panel. For stability, it has been mounted with leveling legs. It has an overall dimension of 35-2/5 inches (W) 2-1/10 inches (D) -2/5 inches (H) and weighs 200 pounds. It is powered by 115 volts, 60 Hz, and 1 phase electrical supply with 2 Amp.

The Atosa CRDC-46 Countertop Refrigerated Display Case interior is built with black frames and adds a defog feature for the glass. This feature works by maintaining the glass free from fogging up. As a whole, the interior is designed to be spacious with a dimension of 33 inches (W) 6 inches (D) 5-7/10 inches (H) and capacity of 4.6 cu. feet. It is equipped with two standard stainless steel shelves, LED interior lighting for enhanced illumination, and two rear sliding doors. These doors are completed with flexible magnetic door gaskets that are proven to be energy-efficient seals.

Atosa CRDC-46 Countertop Refrigerated Display Case can consistently provide cold temperatures ranging from 33to 41because it is equipped with a rear-mounted compressor. This compressor has 1/5 horsepower and uses a natural R290 refrigerant. It features a Dixell digital controller where you can set your preferred temperature and other values required for this commercial countertop merchandiser. This digital controller contains buttons for manual defrost, set, and up and down arrow. It also comes with a digital display that shows the temperature (Celsius or Fahrenheit) and the following indicators: compressor enabled, defrost in progress, and Fans output enabled.

Delivery Details

Observe all safety guidelines when handling this equipment to prevent damaging the refrigerant circuit.
Keep this equipment in an upright position at all times.
Always inspect the equipment shipping container upon receiving to ensure it does not possess any freight damages.
Inspect the condition and completeness of the equipment package before placing your signature on the delivery receipt.
To ensure the equipment will fit on your establishment entry paths and final locations, check its dimension and compare it to your door width and height.
This equipment needs a lift gate if the loading dock is unavailable.
Never improperly throw the packaging materials. Dispose of it in accordance with the relevant local rules and regulations.
Install this equipment on a dry area that is well-ventilated and has a flat, solid floor.
Never install this equipment near objects that are heavyweight and contains sharp edges.
Don put this equipment near any heat source or dust.

Maintenance Guide

Maintain the good condition of your Atosa CRDC-46 Countertop Refrigerated Display Case! You can do this by frequently cleaning the interior of the refrigerated cabinet and the condenser (monthly basis). The cleaning process is easy, you just need to be careful in choosing the materials and cleaning products to use. Choose only the products that are neutral and non-abrasive. Also, always use clean water. Avoid spraying water or allowing water to accumulate in the interior. Use a wet towel in rinsing and drying the interior surfaces.

Disconnect the equipment on the power supply before performing the maintenance, cleaning, and servicing. This will prevent damaging the equipment and voiding its warranty.

Atosa USA, Inc. CRDC-46 Specs

Weight200.00 LBS
Height:26.40(H)
Width:35.40(W)
Depth:22.10(D)
Compressor HP:1/5 HP
Exterior Finish:Stainless Steel
Interior Finish:Stainless Steel
Refrigeration:self-contained, bottom mounted
Service Type:full service
Shelf Quantity:2 shelves
Voltage:115v
Width (Side-Side):31" - 36"
Tags:Atoza
Manufacturer:Atosa USA, Inc.
Amps:2
Phase:1-Ph
Hertz:60
is free shipping:no
Filter Type:Countertop Bakery Cases
